ENERGY STORAGE SYSTEM

High safety and long service life, the selection of high consisterncy, safety and reliablityof LFP（LiFePo4）batteries;
With methods of mains power bypass, inverter ouput, photovoltaic (PV) power generation etc., and has
the function of uniterrupted power suply;
Four charging methods: Solar Methods, Prority power, Priority Solar, Hybrid Charging;
Communication support CAN RS485, RS232;
3.2V100Ah 3.2V100Ah 3.2V100Ah 3.2V100Ah 3.2V100Ah 3.2V200Ah 3.2V200Ah
5.12KWH 5.12KWH 10.24KWH 10.24KWH 15.36KWH 20.48KWH 30.72KWH
43.2~58.4V
0~80A Can Be Set
220Vac 220Vac 220Vac 220Vac 220Vac 380Vac 380Vac
Operating Environment Charging: 0 ° C~55 ° C/Discharge: -10 ° C~60 ° C
CAN，RS485，RS232
50Hz/60Hz(Auto sensing）
93%
51.2V

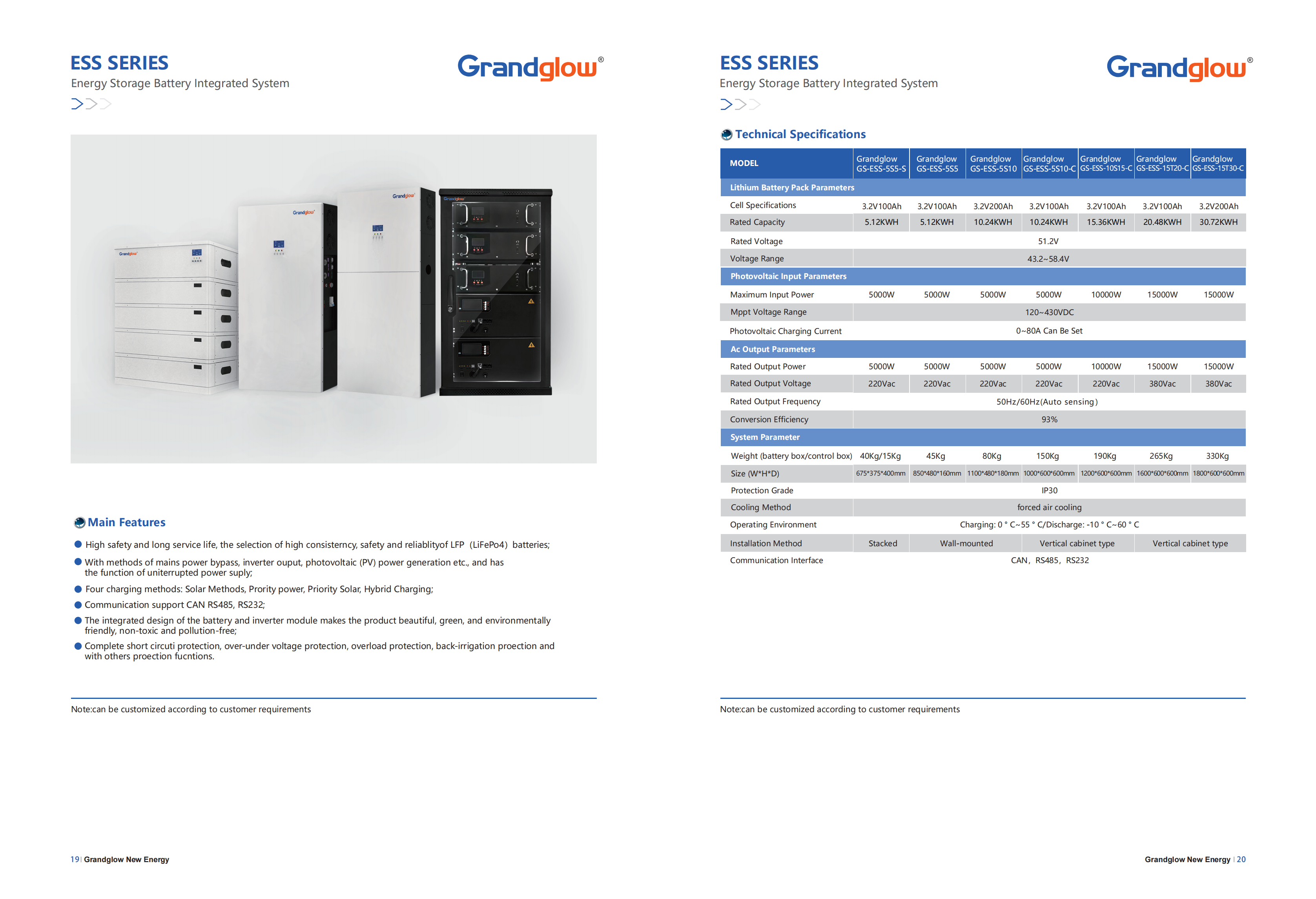

Technical Specifications
Grandglow
GS-ESS-5S5-S
Grandglow
GS-ESS-5S5
Grandglow
GS-ESS-5S10
Grandglow
GS-ESS-5S10-C
Grandglow
GS-ESS-10S15-C
Grandglow
GS-ESS-15T20-C
Grandglow
GS-ESS-15T30-C
675*375*400mm 850*480*160mm 1100*480*180mm 1000*600*600mm 1200*600*600mm 1600*600*600mm 1800*600*600mm
Protection Grade IP30
Cooling Method forced air cooling
5000W 5000W 5000W 5000W 10000W 15000W 15000W
5000W 5000W 5000W 5000W 10000W 15000W 15000W
40Kg/15Kg 45Kg 80Kg 150Kg 190Kg 265Kg 330Kg
The integrated design of the battery and inverter module makes the product beautiful, green, and environmentally
friendly, non-toxic and pollution-free;
Complete short circuti protection, over-under voltage protection, overload protection, back-irrigation proection and
with others proection fucntions.
