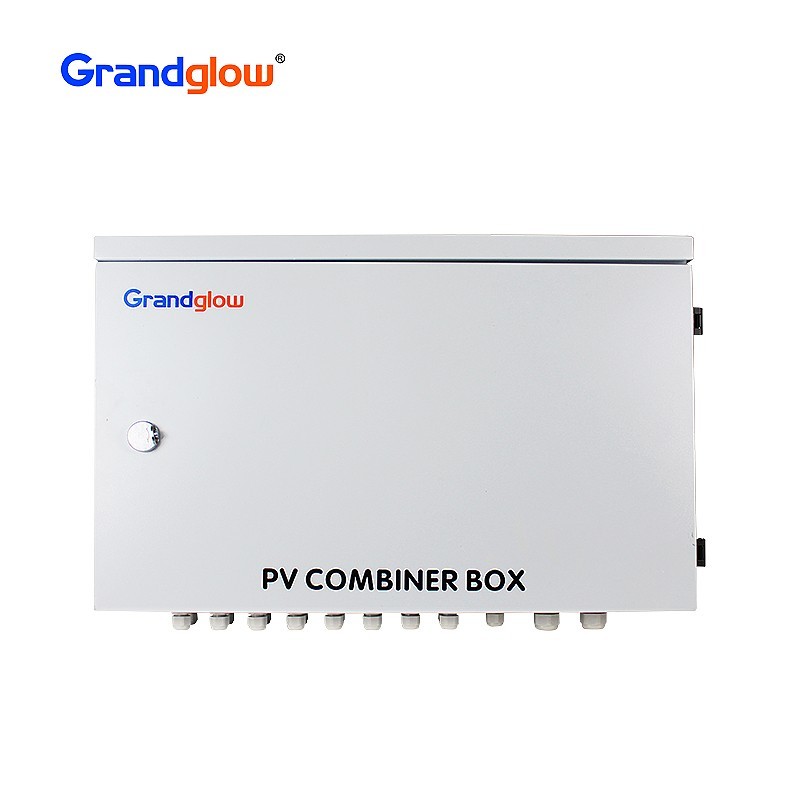

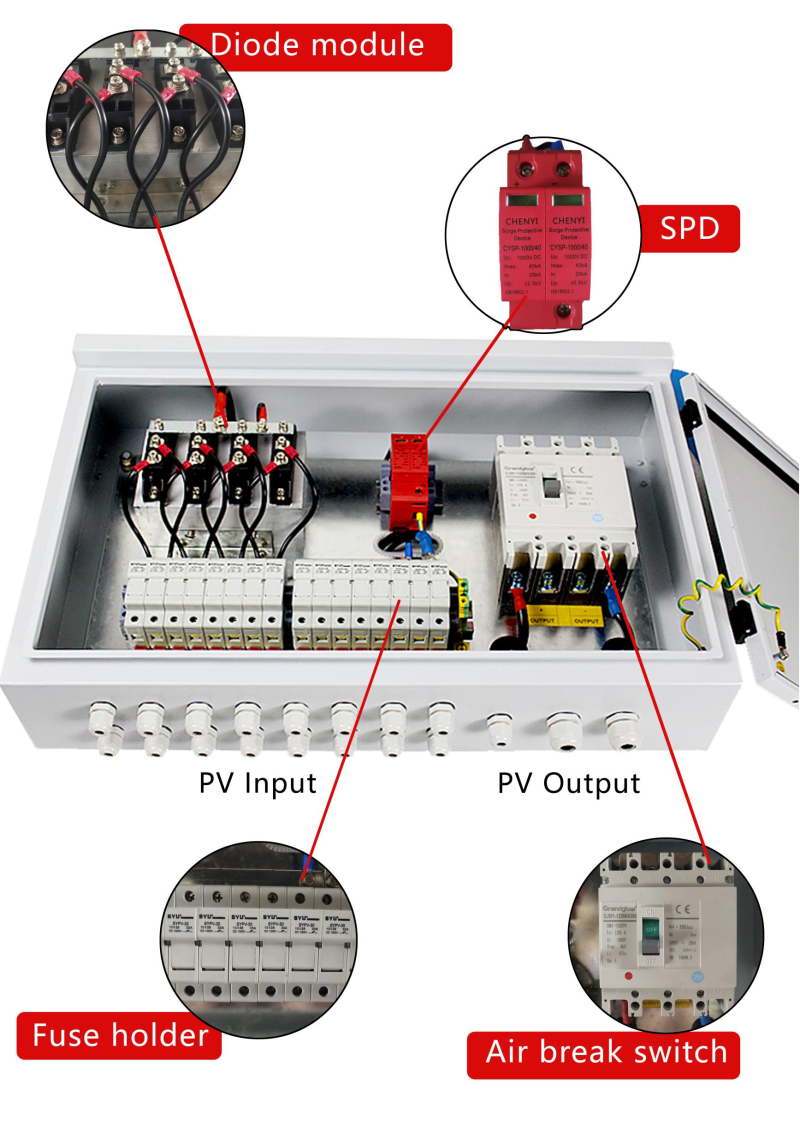

4 input 1 output PV combiner box
The box can access different strings of solar panels in serial,each string current can be up to 15A-30A maximum.
Equipped with high voltage lightning protection device, both anode and cathode have the fuction of lightning protection.
It's safe and reliable since adopting professional DC high voltage circuit breaker and DC voltage value is ≤1500VDC.
Two-stage safety protection device equipped with high-voltage-resistant DC fuses and circuit breakers.
IP65 degree of protection to meet outdoor installation requi rements.
Simple installation and convenient maintenance,easy to use with long service life.
- Grandglow
- Hubei,China
- 3 days
- 10000 sets one month
Get the latest price? We'll respond as soon as possible(within 12 hours)
