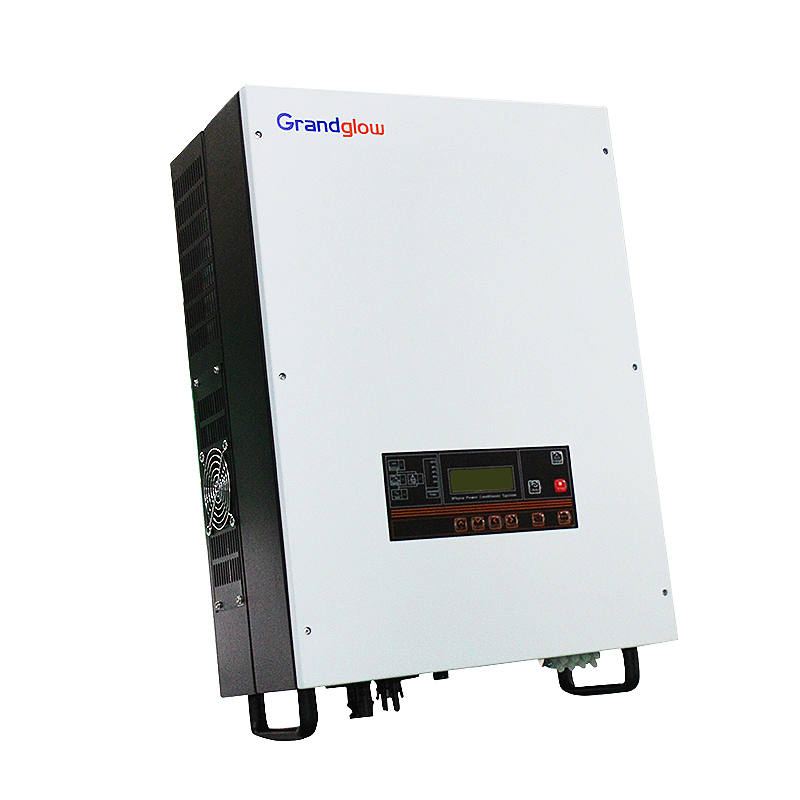

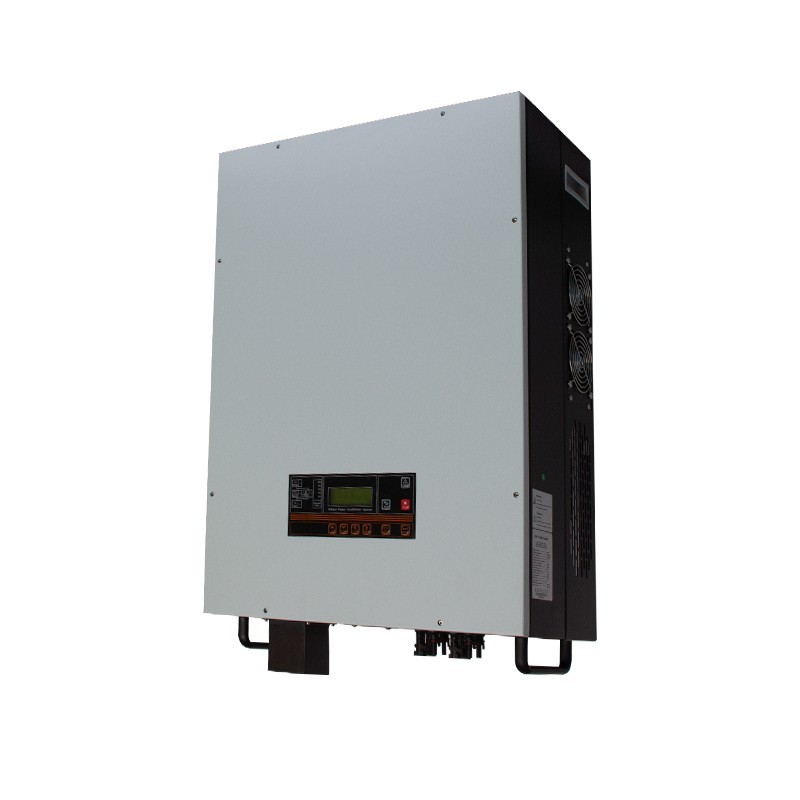

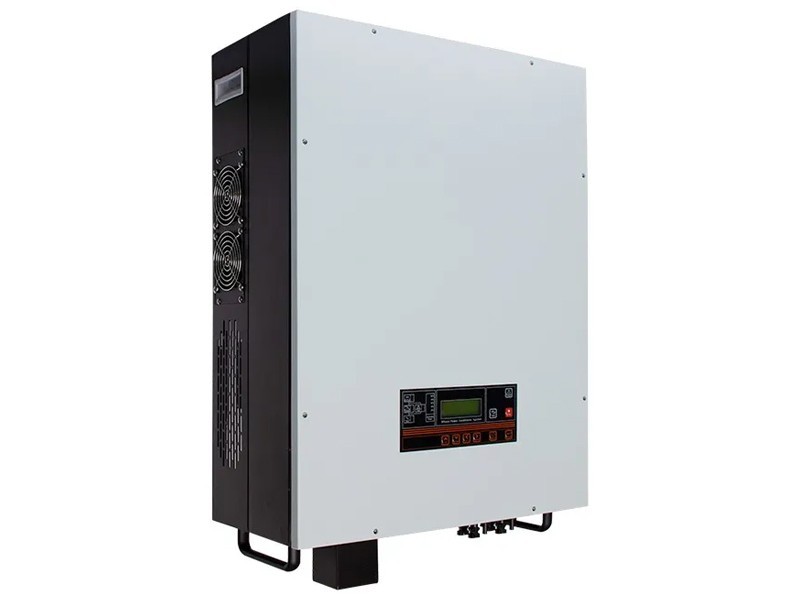

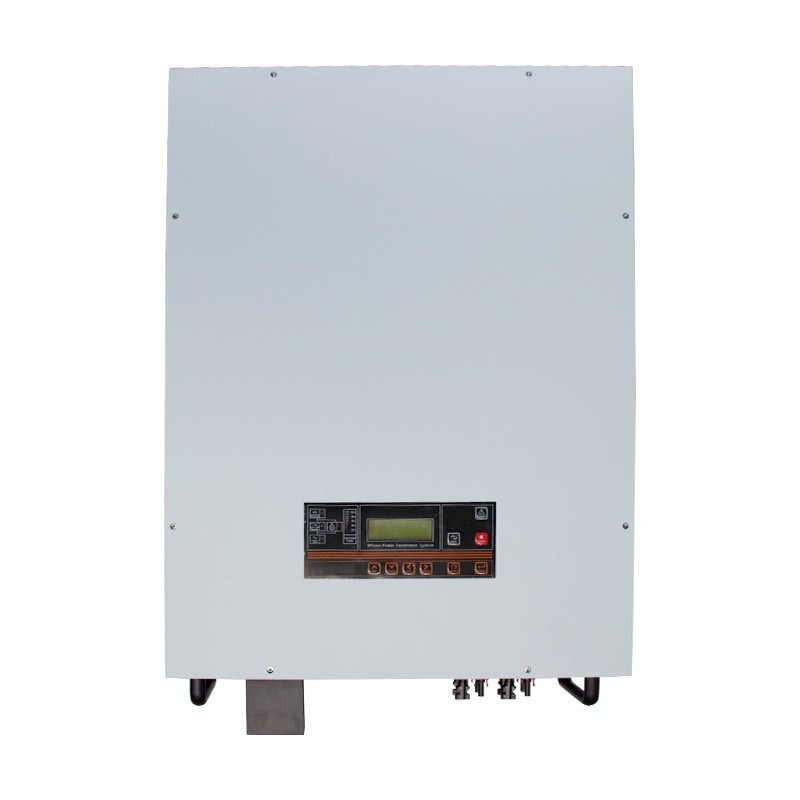

10KW THREE PHASE ON GRID SOLAR INVERTER
1. Max efficiency as much as 98.5%
2. Wide input voltage range,high efficiency MPPT tracking technology
3. Multiple inverters can be operated in parallel
4. Without insulated transformer,strong IP65 protection
5. Small and light,easy to installation

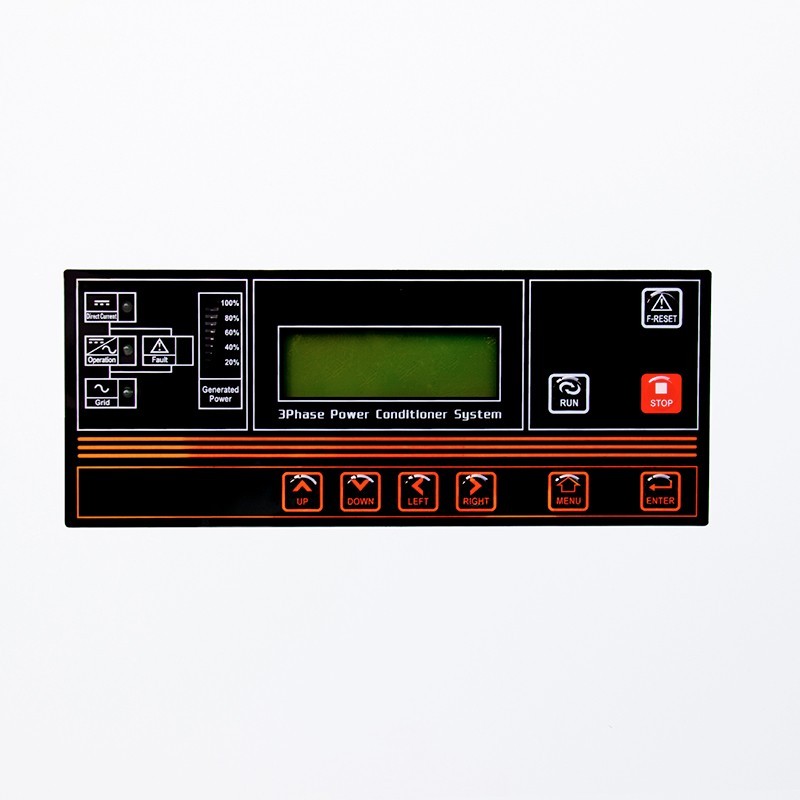

6. LCD display
7. Flexible monitoring mode, support RS232/RS485, WIFI/GPRS
- Grandglow
- China
- 3-30days
- 1000pcs per month
- Information

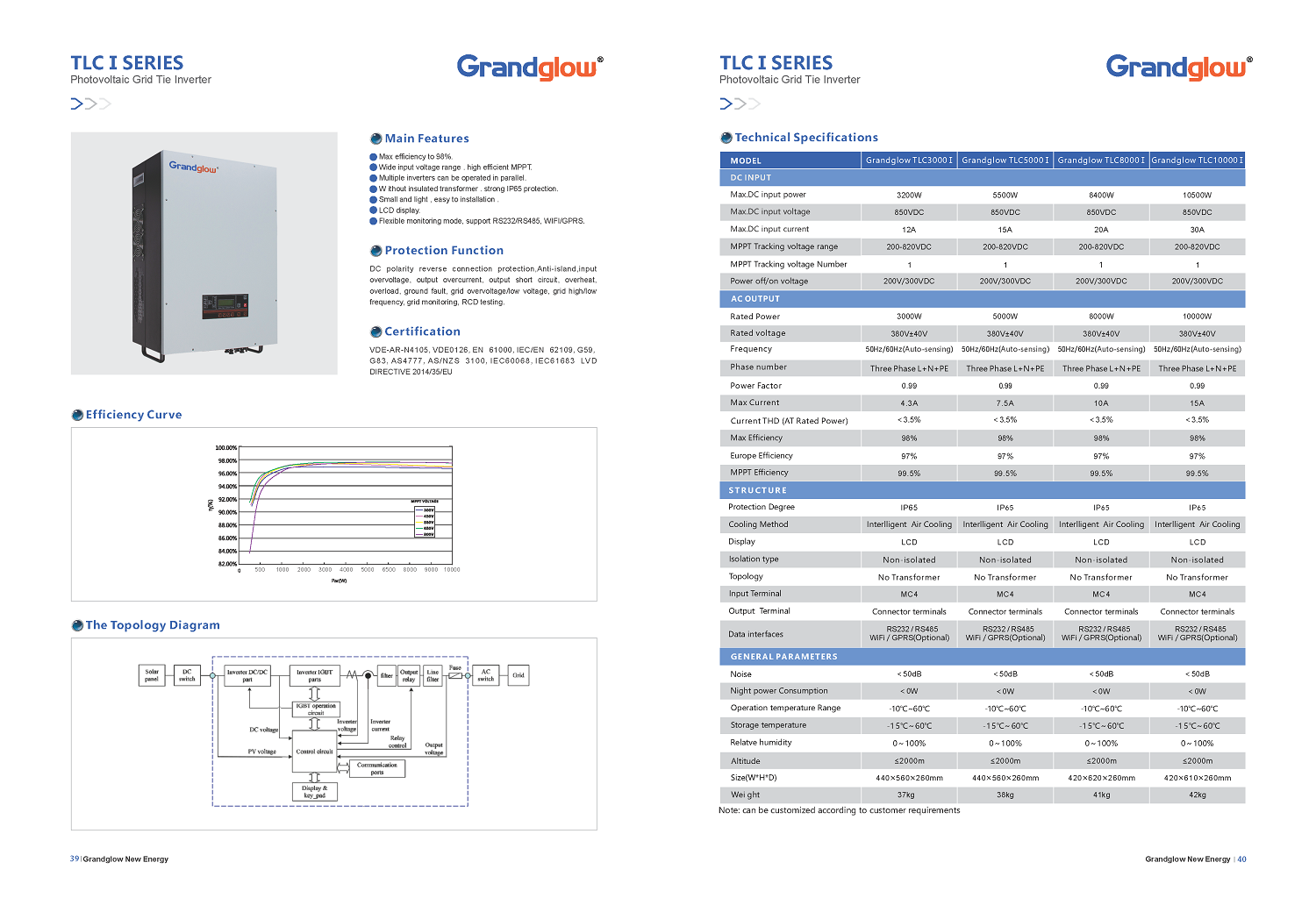

Specification
Place of Origin | China |
Brand Name | Grandglow |
Model Number | TLC10000 |
Max. DC input Voltage | 850VDC |
Output Voltage | 380VAC |
Output Current | 15A |
Output Frequency | 50Hz/60Hz |
Output Type | Three phase |
Size | 420*610*260cm |
Type | DC/AC Inverters |
Inverter Efficiency | 98% |
Certificate | CE |
Warranty | 5 years |
Weight | 30 |
Inverter type | on-grid Solar Power Inverter |
Rated Power | 10000W |
MPPT Tracking Voltage Range | 200-820VDC |
MPPT number | 1 |
Product Description
